carrozzeria

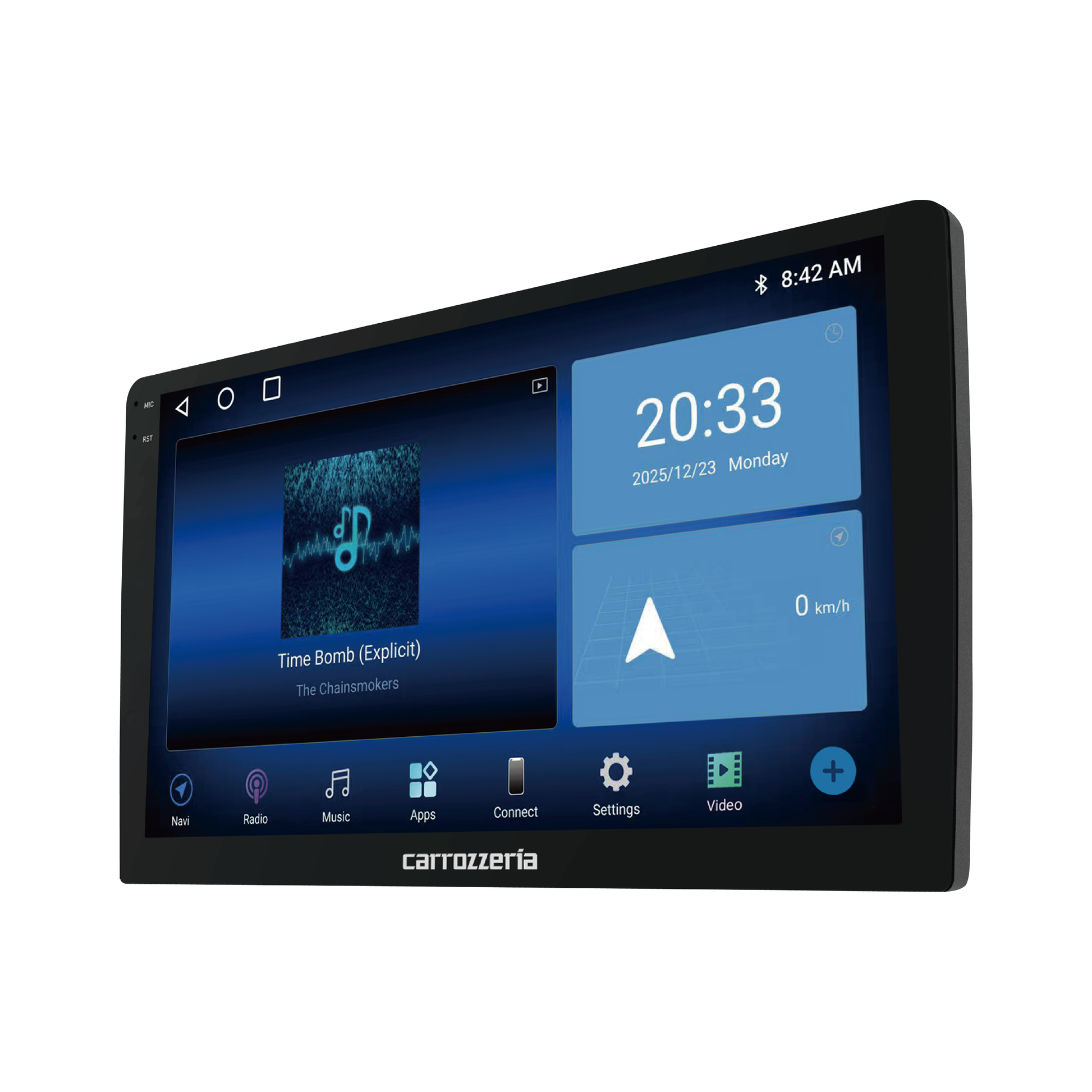

AVIC-RQ131

AVIC-RQ131

FEATURE：

HI-FI Audio

  • Built-in 36 Band ASP EQ Sound Adjustment
  • Supports Heavy Bass Sound
  • Supports Mixed Alarm Sound
  • Built-in EQ Adjustment: Loud Gain Adjustment
  • Supports Lossless Music
  • Maximum Power 50W x 4

Configuration

  • The Android CR 13.0 System
  • Supports iOS Phone Mirrorlink
  • Supports Android Phone Mirrorlink
  • 1280 x 720 Incell Display
  • 64G Large Storage Space
  • Supports 720P/1080P Video Playback
  • Supports 720P/1080P AHD Camera
  • Supports dual USB Channels
  • Supports USB DVR Playback
  • Supports DVR Driving Recording
  • Supports WIFI / Mobile Hotspot Internet Access
  • Supports APK Download, Installation And Removal
  • Supports Video Picture-in-picture
  • High Sensitivity Radio
  • Built-in Bluetooth: Supports A2DP
  • Version: Bluetooth HS/V4.1
  • Supports Bluetooth Music Playback
  • Supports Bluetooth Sharing Network
  • Supports USB DVR
  • Supports Dashcam Video Preview
  • Built-in GPS Positioning
  • Built-in Multi-color Display

SPECIFICATION：

General

  • Operation Voltage: 14.4V (10.5-16V)
  • Installation Size: Thickness: 42mm
  • Operating Temperature: -10℃ ~ +60℃
  • Storage Temperature: -20℃ ~ +70℃

System

  • Operating system: CR 13.0
  • DDR: 4GB
  • Flash: 64GB

Radio

North America:
  • FM Frequency Range: 87.5 ~ 107.9MHz
  • AM Frequency Range: 530 ~ 1710KHz
Europe:
  • FM Frequency Range: 87.5 ~ 108MHz
  • AM Frequency Range: 522 ~ 1620KHz
Latin America:
  • FM Frequency Range: 87.5 ~ 108MHz
  • AM Frequency Range: 520 ~ 1620KHz

Video

  • External Video Input System: NTSC/PAL/SECAM
  • External Video Input: 1VP-P/75Ω

Audio

  • Max Power: 50W x 4
  • Front Output (V): 2V/10KΩ
  • Pre-output Impedance: ≤600Ω
  • Speakers Impedance: 4 ~ 8Ω

TFT Screen Item

  • Size: 9" / 10.1" Display
  • Resolution: 1280 x 720
  • Contrast Ratio: 500
  • Brightness: 500nit

Bluetooth

  • Communication System: BT4.1+EDR
  • Output: BT Standard Power 2 Class
  • Max Communication Range: 5m
  • Frequency Band: 2.4GHZ

USB Interface

  • USB: Readable / Chargeable (5±0.25V/1A)

Video Format

  • MP3/APE/AAC/FLAC
